ZOOM Q8 Ručni digitalni HD video-audio snimač

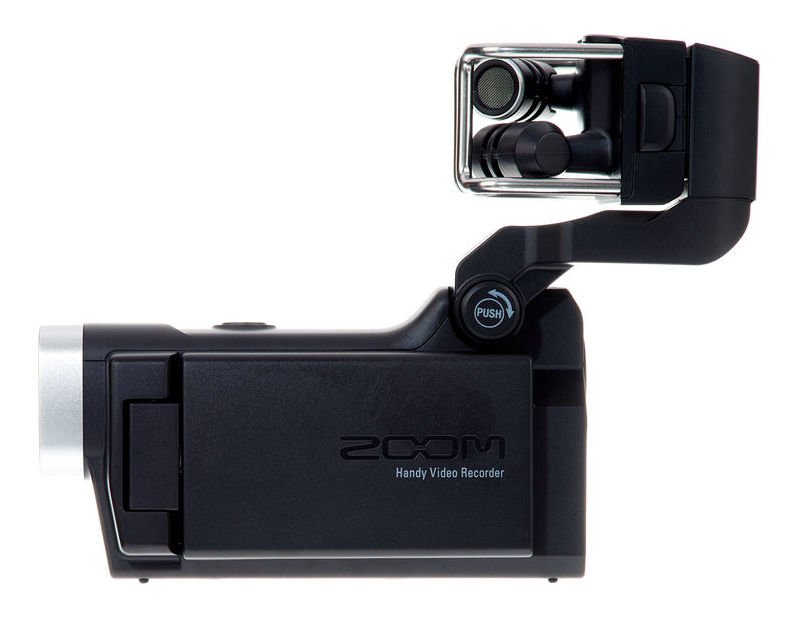

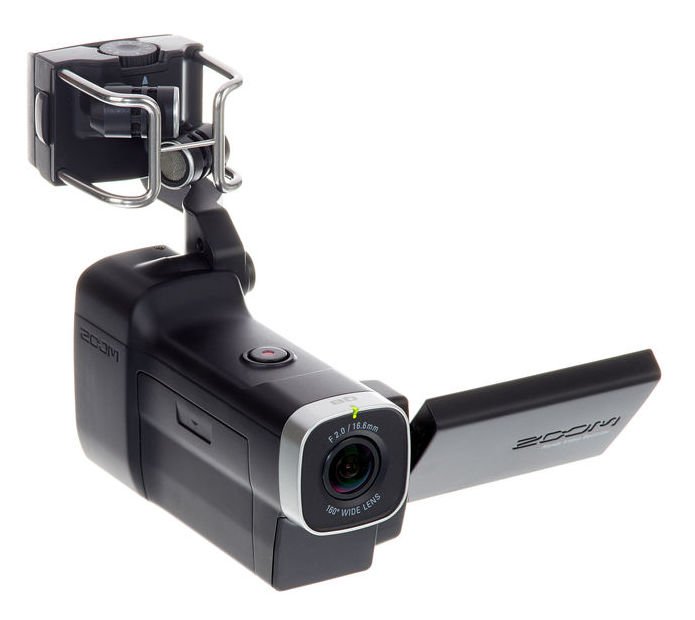

Zoom Q8 Handy Video Recorder

The world’s first camera with interchangeable microphones

You’ve never seen—or heard—anything like it.

The Q8 Handy Video Recorder is our most evolved video recorder yet. It’s a high-definition video camera with a wide-angle lens, easy to use full-color touchscreen, and flexible mounting options. It’s a portable audio recorder with an interchangeable capsule system, dual combo inputs, and the ability to capture up to four tracks of great-sounding audio. It’s everything you need to create.

Complete Compatibility for Total Versatility.

The Q8 comes with a detachable X/Y microphone and is compatible with all Zoom input capsules. If you already own an H5 or H6, you can use their capsules with the Q8 too.

The Ultimate in image control

Mid-Side recording allows you to precisely shape your sound. The MSH-6 MS Capsule contains dual mic elements: a forward-facing, unidirectional mic (the “Mid”) and a side-facing, bi-directional mic (the “Side”). In conjunction with the Q8’s onboard MS decoder, they capture a fully mono-compatible stereo image that can be adjusted, making the MSH-6 ideal for film, video, and television projects.

Audio so clear you’ll swear you are there.

The XYH-6 capsule allows you to craft realistic stereo recordings in every kind of environment. It adds dual large diaphragm mic elements with adjustable width—choose 90 degrees for a more focused sound or 120 degrees for a wider stereo image. It’s a great choice for live recording and for capturing sound effects in the field.



Features:

Records directly to SD, SDHC, and SDXC cards, up to 128GBtiges

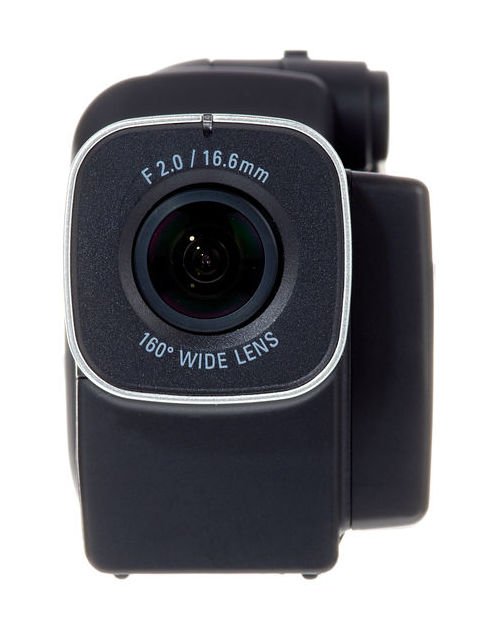

High-quality 160° wide angle lens with selectable viewing angles (F 2.0/16.6mm)
Uses a system of interchangeable audio input capsules that can be swapped out as easily as the lens of a camera

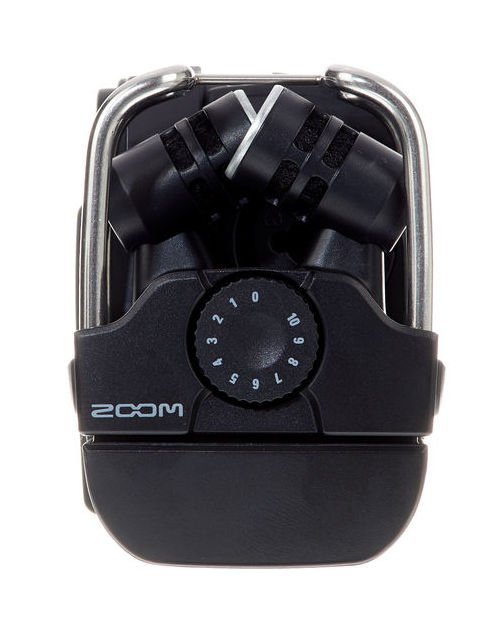

Supplied detachable stereo X/Y microphone (XYQ-8)
Compatible with all Zoom microphone capsules (sold separately)
Full-color rotating LCD touchscreen
Support for five HD video modes, up to 2304 x 1296 pixels (3M HD), as well as two WVGA modes
Frame rates of up to 60 fps for capturing fast action video and slow motion playback
Three imaging sense options (AUTO/CONCERT/NIGHT) for use in all lighting environments
Self timer
Digital zoom
Records video in MOV format (with or without audio)
Records audio in AAC and WAV formats, up to 24-bit/96k
Up to four tracks of simultaneous audio recording

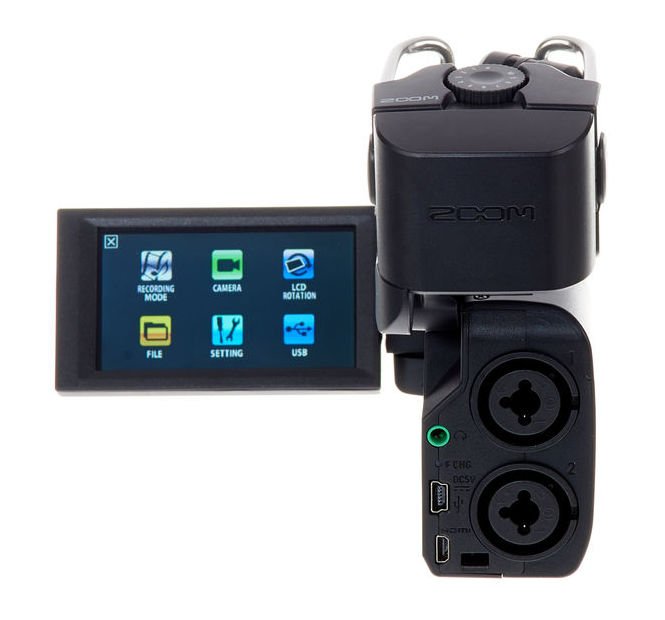

Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad

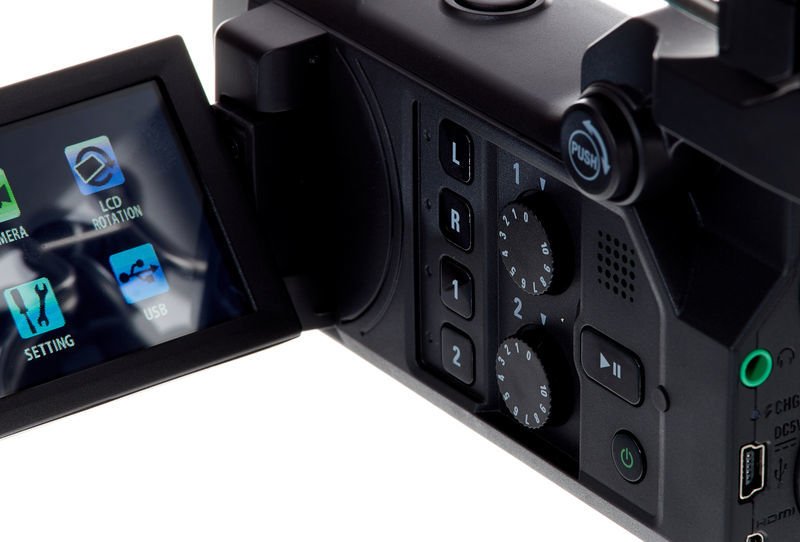

Analog-style gain controls for each input
Built-in audio mixer
Stereo link function
Auto-Gain control plus built-in compressor and limiter
MS Matrix function converts Mid-Side signal from external mics to standard stereo
Supplied foam windscreen and low-cut filter for the elimination of low-frequency noise and rumble
Dedicated Headphone output / Line out
Built-in speaker for fast monitoring
HDMI video output for connection to HDTVs, selectable between NTSC and PAL
USB interface for live streaming and data transfer to and from computer editing software
Webcam and USB mic function for use with external devices such as computers and iPads (Apple Camera Connection Kit required)
Direct monitoring for zero latency during use as a USB mic
Compatible with USTREAM Producer, Flash live Media Encorder, Skype, and other popular streaming applications
SD card reader function
Rechargeable Li-Ion battery (chargeable via USB or optional AC adapter)
Battery life of more than 2 hours
Standard tripod mount
Includes tripod-to-three-prong converter for compatibility with all action camera mounts



Specifications:

Recording media: SD/SDHC/SDXC cards (up to 128GB)
Image sensor: 1/3-inch 3-megapixel CMOS sensor
Lens: Fixed focus (36cm – ∞) F2.0, focal distance approx. 16.6 mm (35mm equivalent)
Video format: MPEG-4 AVC/H.264 (MOV)
Video resolutions:
3M HD (2304 x 1296 pixels) 30fps
HD (1080 pixels) 30fps
HD (720 pixels) 60fps
HD (720 pixels) 30fps
WVGA 60fps
WVGA 30fps
Audio formats:
WAV (16/24-bit quantization, 44.1/48/96kHz sampling frequency)
AAC (64-320kbps bit rate, 48kHz sampling
Audio functions: Low-cut filter, Auto Gain (Concert/Solo/Meeting), compressor, limiter
Image functions:
Digital zoom (1.0x-4.0x)
Scene selection (Auto/Concert Lighting/Night)
Self timer (Off, 3 seconds, 5 seconds, 10 seconds)
Display: 2.7″ full-color LCD touchscreen
Built-in speaker: 400mW 8 Ω mono speaker
L/R inputs:
X/Y mic (XYQ-8): 120° X/Y stereo format
Maximum sound pressure input: 140 dB SPL
Input gain: ∞ to +52 dB
Equivalent input noise: − 120 dBu or less
INPUT 1/2 Input connectors: TRS/XLR combo jacks
Input gain (PAD OFF): −∞ to 55 dB
Input gain (PAD ON): −∞ to 35 dB
Input impedance: 1.8 k Ω or more
Maximum input level: +22 dBu (PAD ON)
Phantom power: +12/+24/+48V (Global for INPUT 1 and 2)
Equivalent input noise: − 120 dBu or less
Output connectors: Combined line/headphones stereo mini-jack Type D micro HDMI
USB:
Connector: USB Mini B type
Operation as mass storage: Class: USB 2.0 High Speed
Operation as audio interface: Class: USB 1.0 Full Speed
Operation as webcam: WVGA/720p video size, 48kHz 16-bit audio
Note: Operation as audio interface and mass storage supported with iPad (Apple Camera Connection Kit required)
Note: USB bus power supported
Power supply: Lithium ion battery, DC 4.2V maximum voltage, DC 3.7V nominal voltage, 1700mAh capacity
Battery recharging times:
USB: 4 hours, 30 minutes (approximate)
AC adapter: 2 hours, 45 minutes (approximate)
Battery operation time: More than 2 hours (when recording 720p/30fps)
AC adapter: ZOOM AD-17, sold separately (DC 5V/1A)
Dimensions:
Mic lowered: 158mm (L) x 48mm (W) x 69mm (H)
Mic raised: 158mm (L) x 48mm (W) x 119mm (H)
X/Y mic (XYQ-8): 50mm (L) x 37mm (W) x 32mm (H)
Weight:
Recorder: 260g (without battery, capsule)
XYQ-8 Mic Capsule: 40g
Battery: 40g / 1.4oz
