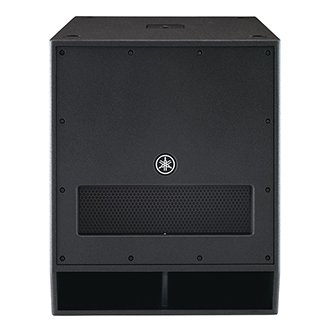

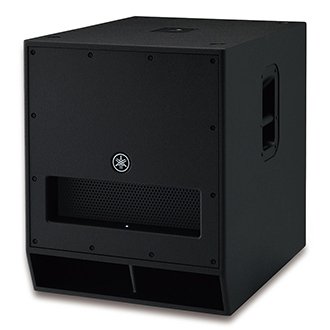

Yamaha DXS18 aktivna zvučna kutija subwoofer

The new DXS 18 achieves best in class SPL of up to 136dB and delivers the lowest frequency 32Hz in the lineup. Equipped with a band-pass type enclosure and high power handling 4-inch voice coil magnet that drives the 18-inch woofer, the Class-D amplifier delivers 1020W of power with exceptional clarity and accuracy.



General specifications

Speaker type
18″ Powered subwoofer, Band-pass type

Frequency range
(-10dB) 32Hz – 120Hz

Components
LF 18″ cone, Voice Coil:4″

Output power
Dynamic:1020W / Continuous: 800W

Maximum output level
(1m; on axis) 136dB SPL

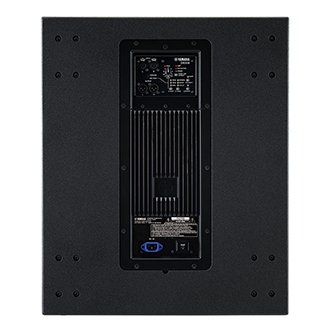

I/O connectors
INPUT: XLR3-31 x2,
THRU: XLR-3-32 x 2(THROUGH or HPF POST)

Processors
D-XSUB: BOOST, XTD LF, NORMAL

Cooling Natural convection
Power requirements
100V – 240V, 50Hz/60Hz

Power consumption
100W

Pole socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)

Dimensions
W 563mm (22.2″)
H 683mm (26.8″)
D 721mm (28.4″)
Net weight
49.7kg (110lbs)

Others Material
Plywood (LINE-X®, Black)
