Superlux DRK681 set mikrofona za bubanj

Superlux DRK681 set mikrofona za bubanj.

Set od 8 mikrofona za ozvučavanje bubnja. Različite vrste kondenzatorkih kapsula u zavisnosti koji deo bubnja se ozvučava.

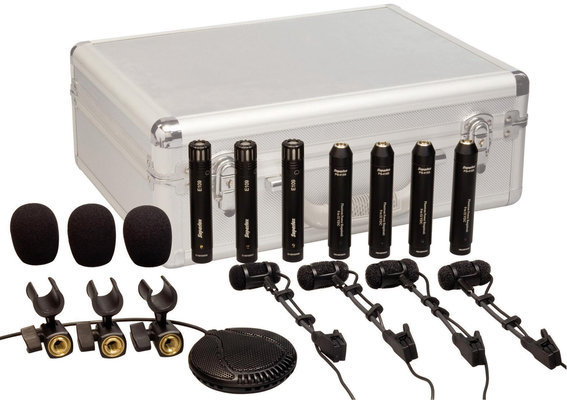

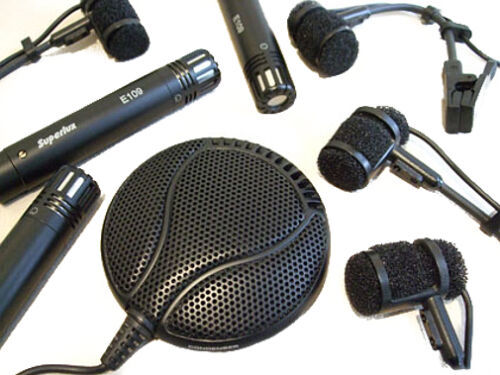

The Superlux DRK681 comprises of eight condenser microphones. The E100 in the set is designed for low frequency instrument pick up using boundary technology. There are four PRA383 miniature gooseneck microphones that can attach to tom toms, snare or any instrument utilising the combined clip. There are also three E109 pencil type condenser microphones for stand mounting to pick up high frequency instruments such as hi-hat, cymbals or brass / stringed instruments. All these microphones work with 9-52Vdc phantom power directly or through the supplied adaptors.

Specifikacija :

• 4 x Superlux PRA-383XLR covering Tom-tom and snare
• 1 x E100 kick mic
• 3 x E109 condenser mics for overheads and hi-hat.

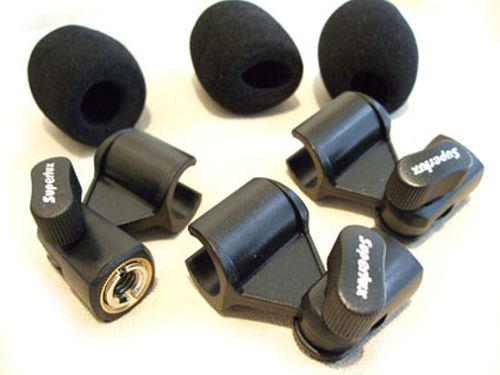

• 3 x HM10S Mic clips
• 3 x S20 Foam screen
• Allumium box

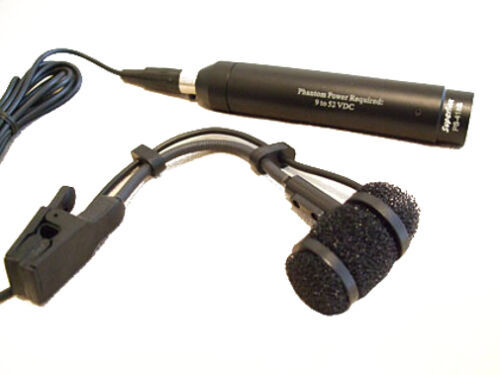

PRA383XLR

Type: Back electret Condenser

Polar Pattern: Super Cardioid









Element: Pressure Gradient

Frequency resopnse: 40~18000Hz





Sensitivity: -42dBV/Pa (8mV/Pa)

Impedance: 200Ω

MinimumLoad Impedance: 1000Ω

Equivalent NoiseLevel: 23dB

Max. SPL: 137dB(THD 1% 1000Hz).

Signal-to-NoiseRatio: 71dB

Dynamic Range: 114dB

Power supply: 9~52V DC Phantom

Current Consumption: 3.5mA

Dimension: Max.Φ20mmx150mm

Net Weight : 160g(5.64oz)

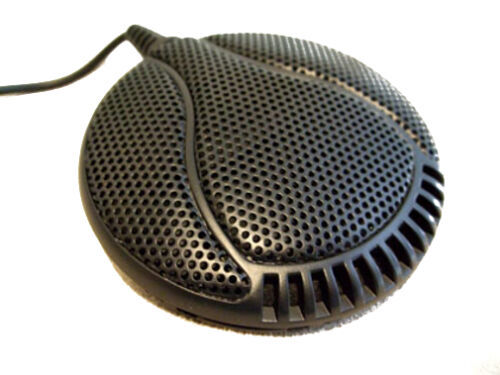

E100

Type: Back Electret Condenser Microphone

Polar Pattern: Half Cardioid







Frequency Response: 30-18000 Hz





Sensitivity:  -60 dBV/pa(1.0 mv/pa)

Rated Impedance: 600Ω

Equivalent Noise Level: Less than 24dB AWeight

Max.SPL: 149dB(THD≦1%1000Hz)

Phantom: 48V

Dynamic Range: 125 dB

Power Supply: 9-52V Phantom

Current consumption: 4mAMin.

Load impedance: 2000Ω

Weight: 270g(9.5 oz)

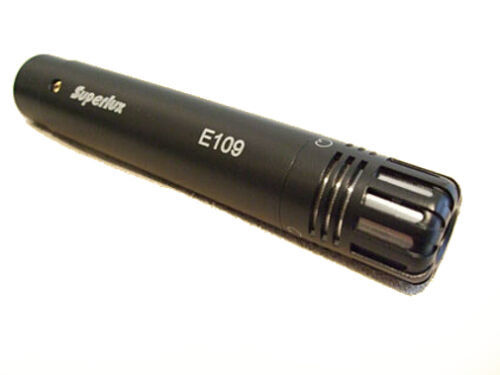

E109

Type: Back Electret Condenser Microphone

Element: Pressure Gradient,transformerless circuitry

Polar Pattern: Cardioid





Frequency Response: 40-20000 Hz





Sensitivity: -43 dBV/pa(7.1 mv/pa)

Rated Impedance: 200Ω

Equivalent Noise Level: Less than 22dB AWeight

Max.SPL:  137dB(THD≦1%1000Hz)

Phantom: 48V

Dynamic Range: 115 dB

Power Supply: 9-52V Phantom

Current consumption: 3.5mAMin.

Load impedance: 1000Ω

Weight: 120g(4.2 oz)

Zemlja porekla: Kina

Net weight:  270 gr





The Superlux DRK681 comprises of eight condenser microphones. The E100 in the set is designed for low frequency instrument pick up using boundary technology. There are four PRA383 miniature gooseneck microphones that can attach to tom toms, snare or any instrument utilising the combined clip. There are also three E109 pencil type condenser microphones for stand mounting to pick up high frequency instruments such as hi-hat, cymbals or brass / stringed instruments. All these microphones work with 9-52Vdc phantom power directly or through the supplied adaptors.
