Relacart MS1 eng set

Relacart MS1 eng set

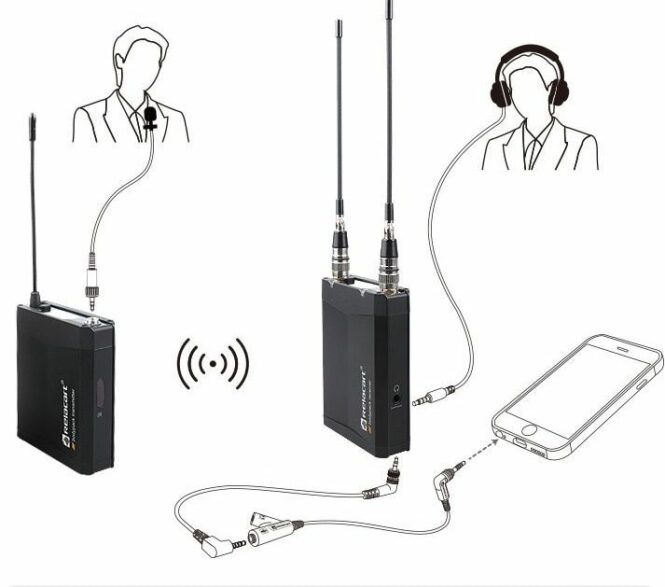

Relacart MS1 je multifunkcionalni, prenosivi, robusni i izdržljivi UHF bežični mikrofonski sistem, kompatibilan sa pametnim telefonima (interfejs od 3,5 mm), digitalnim/SLR kamerama, kamkorderima, kasetofonima, tablet računarima i drugom opremom koja pomaže u snimanju zvuka visokog kvaliteta. Pogodan je za različite profesionalne aplikacije kao što su intervjui, mikro video zapisi ili komercijalni nastupi.

Working range: about 50m

Connector: 3.5mm

RF power output: 30mW

Reference input level: – 26 dBV

Frequency response: 80Hz-15kHz

Signal to noise ratio: <100dB

Pilot frequency: 32.768kHz

Power requirement: 2-3.6V

Operating temperature: 0 – 55 ° C

Dimensions (H x W x D): 71.1 x 61.0 x 20.3mm (without antenna)

Weight: 84g
receiver Ms1R
Wireless frequency range: 521.25MHz-936.85MHz

Working range: about 50m

Connector: 3.5mm

Frequency response: 80Hz-15kHz

Total harmonic distortion: <0.9%

Pilot frequency: 32.768KHz

Power requirement: 2 – 3.6V

Operating temperature: 0 – 55 °

Dimensions (H x W x D): 78.7 x 58.4 x 20.3mm (without antenna)

Weight: 116g

Ms1p
Carrier Bandwidth: 470MHz-960MHz

Oscillation Mode: PLL frequency synthesis

Transmission Power: 13.5 dBm

Carrier Error: 0.005%

Power Supply: AA 1.5V x2

Nominal/Maximum Frequency Deviation: ±65KHz

Frequency setting: Manual button setting or infrared transmission

Input Gain Adjustment Range: 4 adjustable settings, every 3dB step

Harmonic Radiation: -32dBm

Modulation: FSK

Max. Input Level: 250mV

Input Impedance: 2.2KΩ

Battery Life: ≥11hours

Normal Working Current: 130mA

Dimensions: 110 x 42 x42(mm)

N. W. (without battery): 125g
