Proel WM700H bežični set sa pilot mikrofonom i bubicom

Proel WM700H bežični set sa pilot mikrofonom i bubicom

Bežični mikrofon VM700H je PLL UHF sistem promenljive frekvencije, 32 Khz Digital Tone Pilot, USB adapter za napajanje. Frekvencijski opseg 823/832, domet od 30 metara,dDo 4 istovremene frekvencije u svakom opsegu.  ABS ​​kućište. Bodipack predajnik ,kardioidne slušalice i lavalier.

Features

• PLL –16 CH Selectable frequency wireless microphone system
• 32 Khz Digital Tone Pilot
• New durable Painting Finishing
• Universal USB Power Adapter
• 823 – 832 Mhz or 512 – 562 Mhz (WM700HA) frequency range
• 30 meter/ 100 feet range
• 50 Hz -15 KHz frequency response
• 105 dB signal/ noise ratio
• Condenser headset with cardioid capsule and Lavalier
• Up to 4 frequency usable in the same location for each Frequency band.
• ABS carrying and storage case

Specification

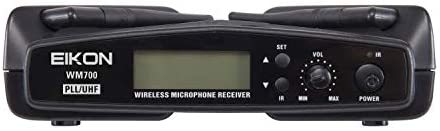

RECEIVER

• Frequency Band  UHF: 823-832 MHz or 512-562 Mhz (WM700HA)
• RF Sensibility  -105 dBm
• RF Image/Spurious Rej.  >70 dB
• RF Interference Reject.  >70 dB
• RF Frequency Stability  ±0.002%
• THD Distortion  <1%
• S/N Ratio  >105 dB
• Frequency Response  50 Hz – 15 KHz (±3 dB)
• Power Supply  5 V DC 500 mA
• Dimensions (mm)  175 x 135 x 45

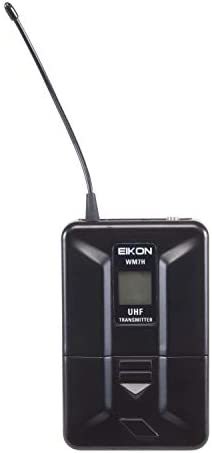

BELT-PACK TRANSMITTER

• RF Frequency Band  UHF: 823-832 MHz or 512-562 Mhz (WM700HA)
• RF Power
• Modulation method  FM (F3E)
• RF Max deviation  ±40 KHz
• RF Frequency Stability  ±0.002%
• Spurious Emission  under limits EN 300422
• Frequency Response  50 Hz – 15 KHz (±3 dB)
• Included Microphones  2

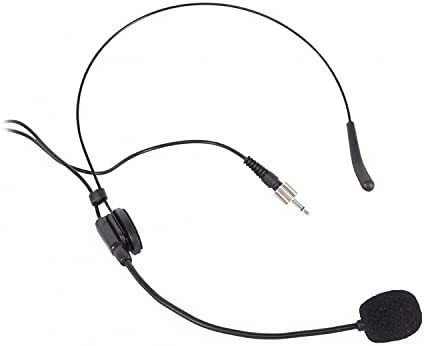

• HCM25 Headset Mic.  Cond. Cardiod

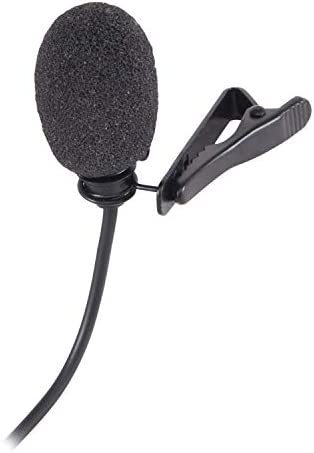

• LCH100 Lavalier Mic.  Cond. Cardiod
• Power Supply  2×1.5V AA alkaline bat
• Dimensions (mm)  100 x 65 x 30
