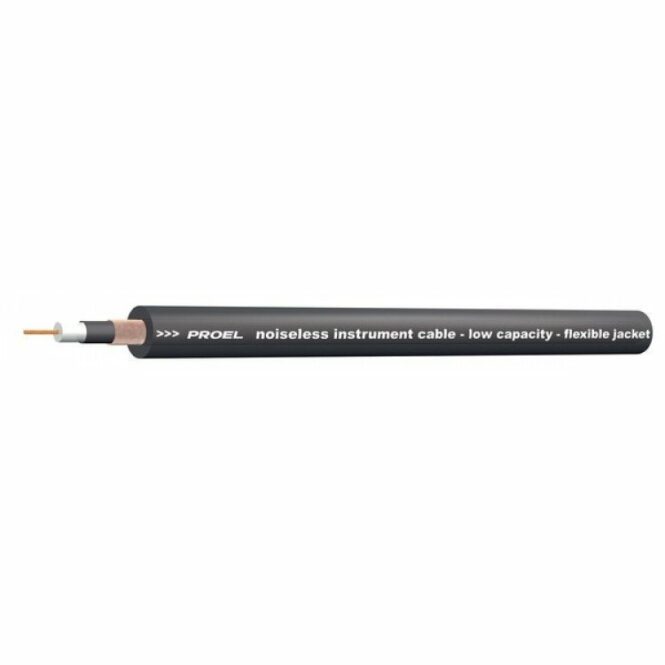

Proel HPC110BK Instrumentalni kabl na metar

Proel prva klasa gitarskog kabla. Koaksijalni kabel koji sadrži štit od čistog vrlo gustog bakra, dizajniran za povezivanje gitare, klavijature, pojačala, efekat pedala i bilo koji audio uređaj za obradu signala. Garancija Proel kvaliteta. Prodaje se na metar.

Very low capacitance, strong and flexible overall jacket, double shielding with conductive thermoplastic material and very thick upper copper spiral. A thick PE insulation makes it an ideal cable for all applications liable to mechanical tensions of the cable (e.g. guitar/amplifier connection).

• Application fields: Musical instrument connection / Multieff ect/mixer connection
• Conductors: Bare copper – 23 AWG = 30 x 0.10 mm (0.25 mm2)
• Insulation: PE Ø 1.8 mm
• Shield: (cable) Spiral Flexible copper 16x3x0.10 95%
• Jacket:
• Conductor: High-conductive graphite jacket Ø 2.40 mm
• Cable: Flexible PVC 60 shore Ø 6.40 mm
• Color: Black
• Electrical resistance: 74 Ohm/Km (conductor) @ 20°C
• Electrical capacitance: 120 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 44 Kg/Km
• Minumum bendig radius: 20 x cable section radius
• Packaging: 100 m carton reel
  Available colors: Black, Blue, Bronze, Green, Red, White
  Dostupne boje, Plava, Bronzana, Zelena, Crvena i Bela….po porudzbini. Crna uvek na lageru
