Neumann KH 120 Aktivni monitor

Neumann KH 120 Aktivni monitor

Neumann aktivni studijski monitor KH 120A je dvosistemski monitor sa duplom termičkom zaštitom pojačala klase AB. Baš kao i kod drajvera, razlivanje zvuka,disperzija, je matematički određena (MMD ™) izračunava se sa optimalnim nivoom preciznosti. Horizontalno precizan zvuk obezbeđuje fleksibilnost u položaju slušanja, dok uža vertikalna disperzija smanjuje negativne efekte refleksije u blizini, na primer od stola ili miksete. Fino kontrolisane karakteristike disperzije optimizuju reprodukciju čak i u najrazličitijim konfiguracijama sobe.

• 1″ Tweeter
• Frequency range: 52 Hz – 21 kHz +/- 3 dB
• Peak SPL 112.2 dB
• Output power: 50 W woofer and 50 W tweeter

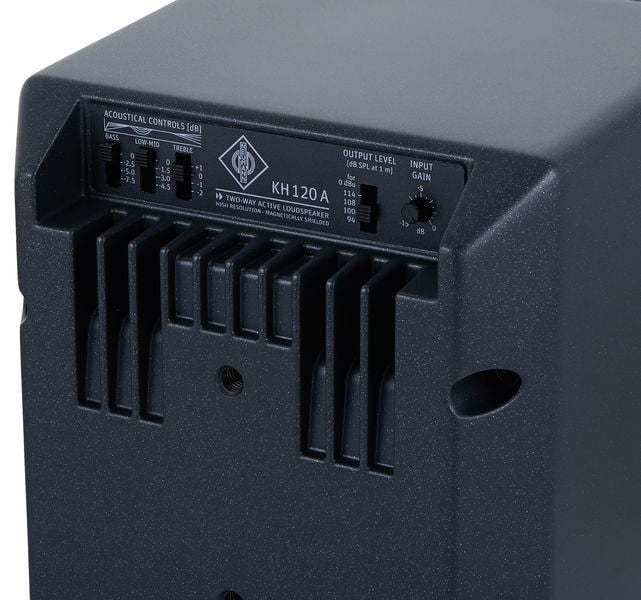

• 4-Stage acoustic controls for bass, low-mid and treble
• Electronic peak / Thermo-limiter protection circuit separately for woofer and tweeter
• Input / output level control
• Input: Balanced XLR
• Magnetically shielded
• CMRR: > 56 dB @ 15 kHz
• Max. Input level: 24 dBu (18 dBu for analog delayed)
• Format BNC: AES3, S/P-DIF
• Impedance BNC, unbalanced: 75 Ohm (input / output)
• Input switching: Analog, Digital A, B Digital, Digital A + B (with and without delay available)
• Digital converter: Resolution, technology 16/24 Bit DAC
• Digital converter: Sampling rate 32-192 kHz
• Digital Sensitivity -18 dBFS
• D-A Dynamic range: 120 dB
• Audio-Video / Lip sync- and Time of Flight delay range: 0 – 400 ms
• Audio-Video / lip sync max. frames: 0 – 10 (40 ms) frames, 0 – 12 (33 ms) frames
• Resolution: Time / distance 0.1 ms / 3.4 cm (1 3/8 “)
• Latency D-A (A-D-A): 0.22 to 1.85 ms (0.54 ms)
• Dimensions (H x W x D): 277 x 182 x 220 mm
• Weight: 6.2 kg
