JBL PRX 715 XLF aktivni zvučnik
SKU: jbl-prx-715-xlf-aktivni-zvucnikPreuzimanje
Direktna kupovina iz radnje
Dostava
• Povremeno na stanju
- Kategorija:
- Brend:JBL
- Dostupnost:Po porudzbini
Opis & specifikacije

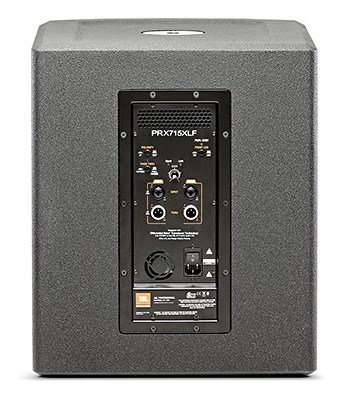

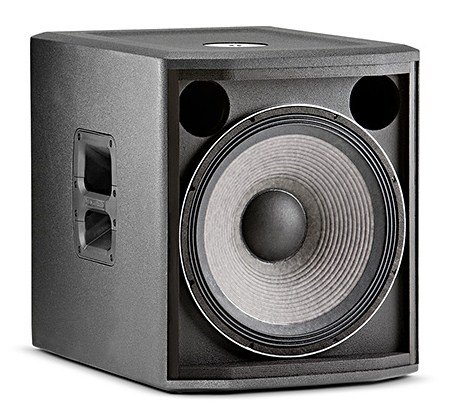

JBL PRX 715 XLF aktivni zvučnik subwoofer
The PRX715XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX715XLF performs with extreme efficiency and control.
FEATURES- 131 dB peak SPL
- 15″ Differential Drive® low-frequency driver for low-distortionand higher SPL
- Efficient Class-D amplifier technology
- DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
- Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
- 2 x XLR-¼” combination inputs, with 2 x XLR loop-thru
- M20 pole receptacle accepts JBLPOLE-GA and JBLPOLE-MA speaker poles.
- Multiple handles with comfort rubber grips for easy transport
- Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
- Cloth backed, dent-resistant 16 gauge steel grilles
SPECIFICATIONS
- Power Rating: 1500 W
- AC Power Input:100V – 240V~ 50/60 Hz
- Frequency Range (-10 dB): 37 Hz – 113 Hz
- Frequency Response (±3 dB): 44 Hz – 91 Hz
- Internal Crossover Frequency: 100 Hz DSP controlled 48 dB filter slope
- Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
- Maximum SPL: 131 dB
- Signal indicators
- Limit: Yellow LED indicates peak output has been reached and dsp
- limiter is acting
- Signal: Green LED indicates signal present
- Power/Standby: Blue indicates system has power and ready to pass audio,
- Red indicates system has power but is in a power saving mode and will not
- pass audio.
- Dynamic Control (Input):dbx Type IV™ limiter circuit
- Input Impedance: 20K Ohms (balanced)
- Polarity: normal or reverse polarity
- LF Driver: 1 x JBL 2275H 15 in woofer
- Enclosure: Rectangular, 18 mm & 25mm, plywood
- Transport: 2 x injection molded handles with backing cup
- Finish Obsidian DuraFlex™ finish
- Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
- Input Connectors: Two Balanced female XLR/ 1/4″ combo connectors
- Output Connectors: Two balanced male XLR connectors.
- Dimensions: (H x W x D) :547.1 mm x 445.0 mm x 580.0 mm
- Net Weight: 25.4 kg (56 lb.)
POZOVITE ZA TRENUTNU CENU I ROK ISPORUKE 011-212-0444 ili pošaljite upit na sales@lyrastyle.rs
