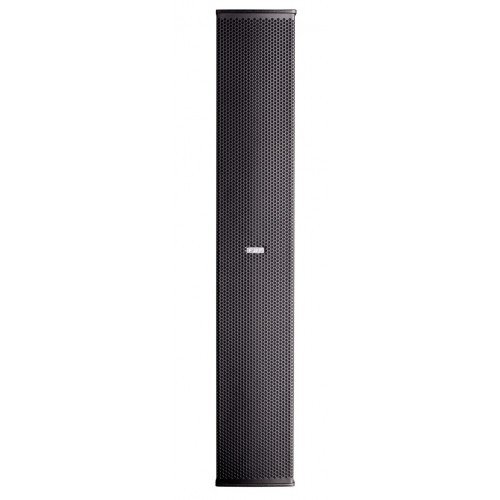

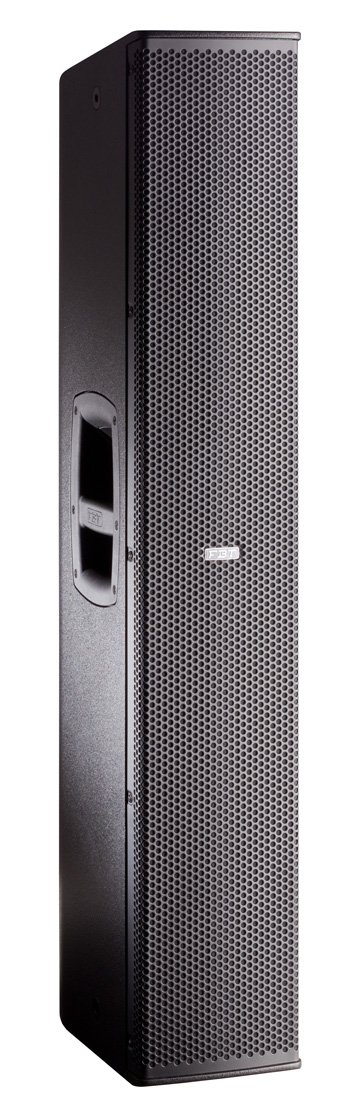

FBT Vertus CLA 406 A Column

ACTIVE COLUMN LINE ARRAY

Features:

VERTUS CLA 406A

600W + 300W

133 dB SPL

Active Column Line Array

2-way bi-amplified line array column system
4 x 165mm (6.5”) custom woofer voice coil 38mm (1.5”)
B&C HF neodymium driver with 36mm (1.4”) exit and 64mm (2.5”) voice coil
Waveguide FBT large format with dispersion 100 ° H x 25 ° V
Frequency response from 65Hz to 20KHz
Amplifiers Class D 600Wrms for LF and HF 300Wrms with switching power supply
Processor DSP with 8 EQ presets
Control Panel with XLR input and link, volume, presets, filter-HP, ground-lift
Neutrik powerCON power IN and LINK connectors
12mm (1/2”) birch plywood with scratch-resistant coating.
12 attachment points above and below for the optional hardware that allows the installation of hanging or pair two CLA406A with angle of 0 ° – 10 ° – 20 ° in the vertical plane
Top side tilted 10 ° for the inclination of two columns without damaging gap between the waveguides for a wavefront extremely consistent over the 18kHz
35mm (1.3/8”) top hat for stand mount facility
It is ideal for live applications, assisted by sub CLA 118SA, which for fixed installations

Specifications:

Built-in amplifier LF/HF: 600/300 W RMS
Built-in amplifier peak LF/HF: 1200/600 W
Frequency response: 65Hz – 20KHz -6dB
Low frequency woofer: 4×6.5 – 1.5 coil – neodymium inch
High frequency driver: 1×1.4 – 2.5 coil – neodymium inch
Maximum SPL cont/peak: 133 dB
Dispersion: 100°x25° H x V
Input impedance: 22 Kohm
Crossover frequency: 1.2 KHz
Ac power requirements: 640 VA
Input connector: XLR with loop
Power cord: 5 / 16.4 mm/inch
Net Dimension (WxHxD): 190x1235x290 / 7.48×44.68×11.41 mm/inch
Net weight: 27 / 59.52 kg/lb
Transport Dimension (WxHxD): 290x1235x390 / 11.41×48.62×15.35 mm/inch
Transport weight: 32 / 70.54 kg/lb
