Boss DD-500 gitarski procesor

Boss DD-500 Masterful Sound, Extraordinary Creative Power



Filled with newly developed BOSS technology, the DD-500 is the most powerful and versatile stompbox delay ever created. This incredible sound-creation toolbox offers 12 distinctive delay modes with exceptional audio quality, plus deep editing controls, a graphic display, patch memories, MIDI, and much more. From basic echo to dead-on emulations of classic delays to incredibly lush spatial textures that take your breath away, the DD-500 will launch your music places you never thought possible.

• Studio-level stereo sound with 32-bit/96 kHz processing throughout
• 12 versatile delay modes from vintage to modern deliver unlimited creative possibilities
• Unrivaled real-time expression with customizable control settings for onboard and external switches
• Graphic LCD for easy, intuitive operation while performing and editing
• Onboard patch memories and hands-on controls
• Equipped with a built-in Phrase Looper, MIDI, USB, and more
• Selectable buffered or true-bypass operation
• Runs on four AA-size batteries or PSA-series AC adapter



Sampling Frequency: 96 kHz

AD/DA Conversion: 32 bits

Processing: 32-bit floating point

Delay Modes:

12 modes

STANDARD

ANALOG

TAPE

VINTAGE DIGITAL

DUAL

PATTERN

REVERSE

TERA ECHO

SLOW ATTACK

FILTER

SHIMMER

SFX

Maximum delay time: 10 sec.(depends on delay mode)

Phrase loop:

60 sec. (96 kHz/MONO, 48 kHz/STEREO)

120 sec. (48 kHz/MONO)

Delay can be applied.

Patches: 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])

Pedals: Foot switch x 3 [A][B][TAP/CTL]

Knobs:

MODE

TIME/VALUE

FEEDBACK

E.LEVEL

TONE

MOD DEPTH

Display: Graphic LCD (128 x 62 dots, backlit LCD) x 1

Nominal Input Level: INPUT A/MONO, B: -10 dBu

Maximum Input Level: INPUT A/MONO, B: +8 dBu

Input Impedance: INPUT A/MONO, B: 1 M ohm

Nominal Output Level: OUTPUT A/MONO, B: -10 dBu

Maximum Output Level: OUTPUT A/MONO, B: +8 dBu

Output Impedance: OUTPUT A/MONO, B: 2 k ohms

Recommended Load Impedance: OUTPUT A/MONO, B: 20 k ohms or greater

Bypass: Buffered bypass or True bypass (with relays)

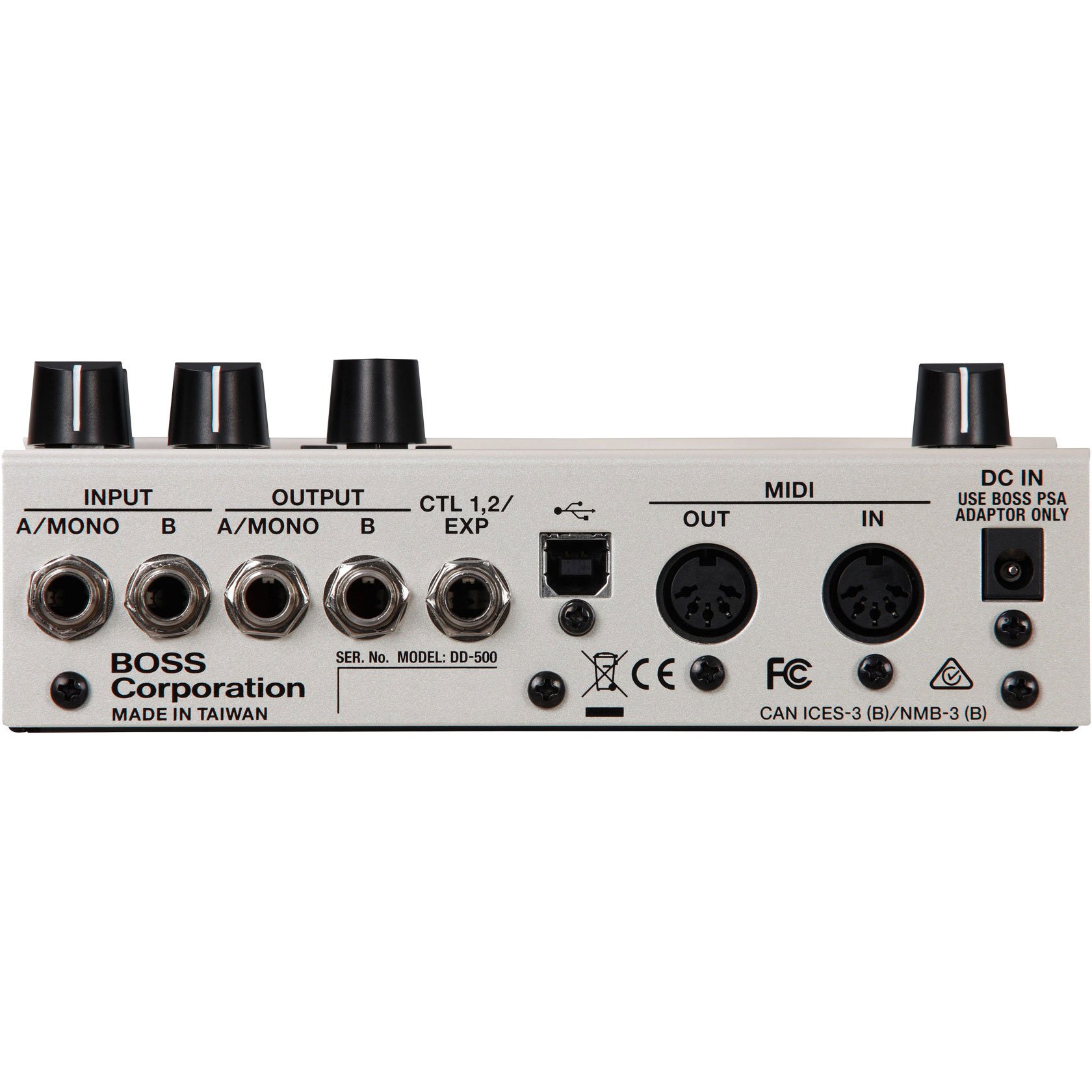

Connectors:

INPUT A/MONO, B jacks: 1/4-inch phone type

OUTPUT A/MONO, B jacks: 1/4-inch phone type

CTL 1,2/EXP jack: 1/4-inch TSR phone type

USB COMPUTER port: USB type B USB-MIDI

MIDI (IN, OUT) connectors

DC IN jack

Power Supply: Alkaline battery (AA, LR6) x 4, AC adaptor

Current Draw: 200 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 7 hours

Accessories:

Owner’s manual

Leaflet “USING THE UNIT SAFELY”

Alkaline battery (AA, LR6) x 4

Options (sold separately):

AC adaptor: PSA series

Footswitch: BOSS FS-5U, FS-5L

Dual Footswitch: BOSS FS-6, FS-7

Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5

SIZE AND WEIGHT

Width: 170 mm / 6-3/4 inches

Depth: 138 mm / 5-7/16 inches

Height: 62 mm / 2-1/2 inches

Weight (including battery): 1.0 kg / 2 lbs 4 oz.
